TECHNICAL SPECIFICATIONS
Electric specification
Electric Modes
Torque-Assist
Range
Up to 50/100 miles (Dual Battery)
Speed
Up to 20 mph
Battery
Samsung Li-ion 48V 15Ah (720Wh) - Tested by SGS compliant to UL 2271
Removable Battery
Yes

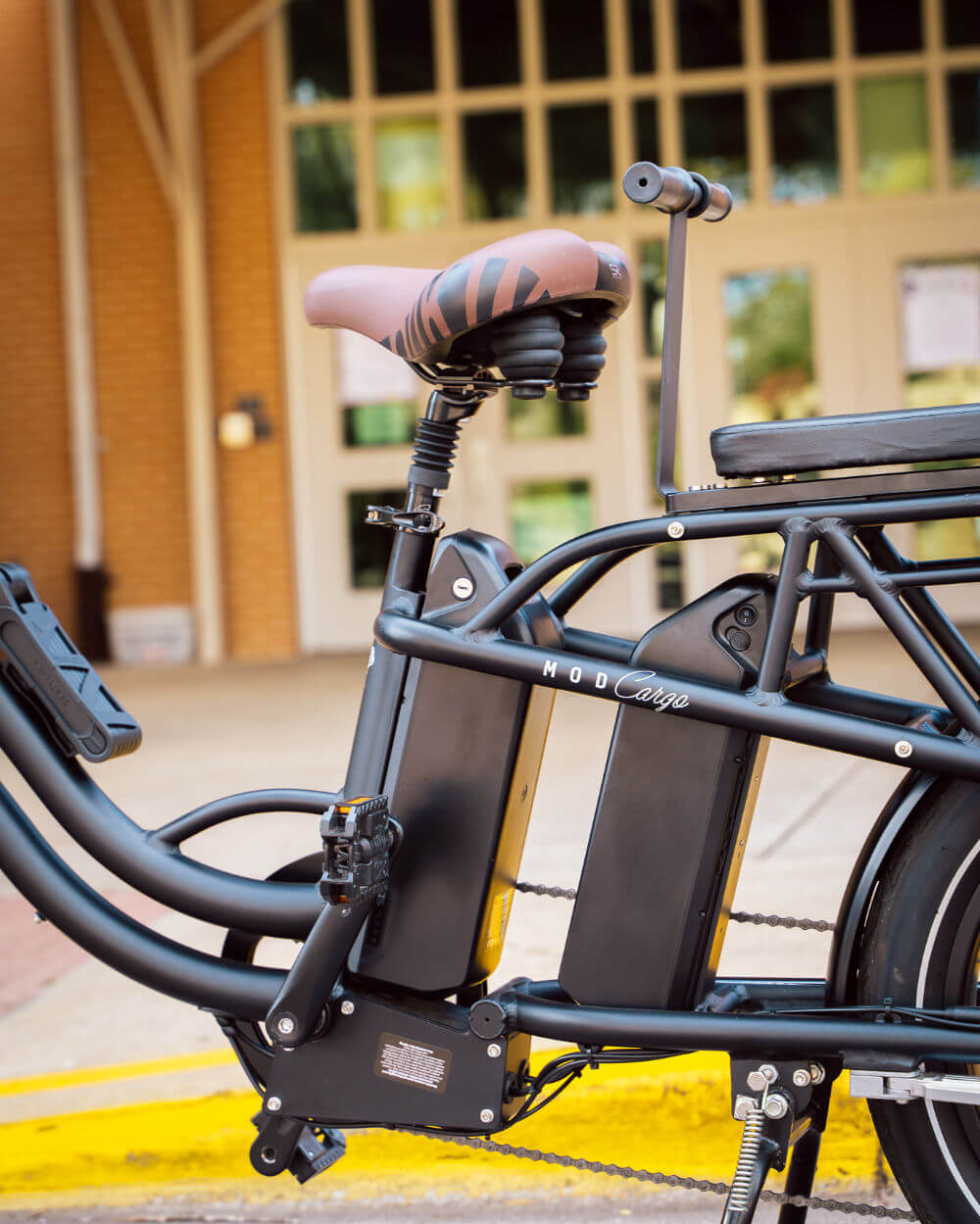

Dual Battery Compatible
Yes
Motor
MOD DRIVE 750W Geared Hub - 69 Nm of torque
Display
MOD BIKES S3 Smart Color Display w/USB port
Charger
2A automatic smart charger
Charging Time
3-6 Hours
Class
Class 1
Headlight
Wide beam 300 lumen LED
Taillight
Integrated LED w/brake light
Throttle
Not compatible
Pedal Assist
Programmable 5 levels, Torque Sensor
Battery Safety Tips
For lithium-ion battery safety tips, click here.
Canada Compatibility
Canadian shipments are configured to meet 500W & 32 km/h regulations.
Mechanical specification
Frame
High-performance 6061 aluminum frame
Fork
Mozo, 50mm Travel, w/ preload and lockout
Brakes
Rear Shock
N/A
Rims
20″ x 60mm
Tires
Multi terrain Kenda K-Shield 20″ x 3.00″ w/reflective sidewall
Quick Release
Front- yes / Rear- no
Shifter
LT-WOO 7 Speed Trigger Shifter
Derailleur
Shimano ALTUS 7 speed
Pedals
Wellgo, foldable aluminum
Freewheel
7 speed DNP 11-32 W/Power Gear
Crank
52T w/ double side aluminum bash guards
Chain
KMC
Saddle
Faux Leather Selle Royal – Premium gel
Seat post
EXA Form 525 Suspension Seatpost, 40mm Travel, 27.2, Preload Adjustment
Handlebar
Aluminum Alloy, Low Rise, Width 600mm
Grips
Faux Leather ergonomic Grips
Stem
Telescopic aluminum foldable stem
Fenders
Full cover anti-vibration plastic fenders
Rack
Multi-purpose, extended Snap-On rack, Child Seat Ready, 250 lbs payload capacity
Kickstand
Heavy duty, adjustable, center-mounted
Bell
Premium aluminum bell
Slap Guard
Yes
Tool Set
Multi tool, Adjustable wrench & touch up paint
Waterproof Ratings
Motor (IP44), Display (IP66), Controller (IPX5), Main Wire (IP66), Battery (IP65), Torque Sensor (IP67)
Recommended operating temperature
14–113 °F (–10–45 °C)
Recommended storage temperature
41–95 °F (5–35 °C)
